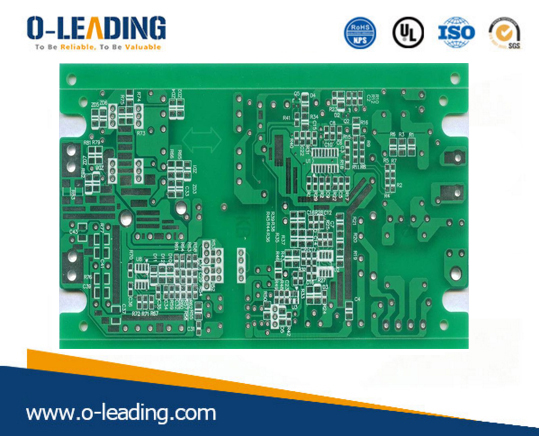

led pcb board Printed circuit board, Custom Circuit Boards china, oem pcb board manufacturer china

led pcb board Printed circuit board, Custom Circuit Boards china, oem pcb board manufacturer china

  • PCB P/N:  104_DCP_R2
  • Layer Count:  4L
  • Material:  FR-4 TG130
  • Board thk:  1.6mm
  • copper thk:  1/1/1/1oz
  • Smallest hole size:  0.3MM
  • No. of holes (pcs):  295
  • line w/s:  12/8mil
  • Impedance control. Y / N (Tol %):  N
  • Surface Finishing:LF-HASL
  • Sn: 1-40UM



Welcome to O-leading


We are professional PCB manufacturer with more than ten years experiences . Products range-single, double side ,multi-layer PCB ,flexible PCB and MCPCB.We can provide fast prototype service – S/S in 24hrs , 4-8layers in 48-96 working hrs production time. (led pcb board Printed circuit board)

COPPER PLATE HOLES MINIMUM .025 AVG, .020 MIN.. HOLES MAY NOT BE PLUGGED

Pack with colorless transparent bubble film ,25 PCS/ bag, put desiccant in flank, put humidity  indicator card on top side


PLEASE CLICK THESE FOR MORE INFORMATION: Custom Circuit Boards china


Product Description


Place of Origin  Guang dong, China (Mainland)  Brand Name  O-Leading
Model Number  power bank pcb assembly pcba manufacturer  Base Material  FR-4,,Aluminum
desigh type client requirement  Board Thickness  0.1-5mm
character Industrial Control pc Min. Line Width  0.2mm
Surface Finishing  immersion gold ,OSP,lead free HASL  Min. Line Spacing  0.2mm
color  blue ,red ,green,black.yellow  price  $0.1-$10
applicable to
led,mobile phone,air conditioners,washing machines
Min. Hole Size  0.2mm
certificates ISO9001,UL,RoHS,SGS0.01m3-10m3  size  0.01m3-10m3
Q/CTN  10PCS-100PCS  Copper Thickness  0.5oz-5oz
weight  0.01kg -5kg  MOQ  10pcs









Certifications








Packaging & Delivery


Packaging Details  16 years professional OEM pcb board manufacturer
Delivery Detail  7-12days






FAQ


1. How do O-Leading ensure quality?
Our high quality standard is achieved with the following.
1.The process is strictly controlled under  ISO 9001:2008 standards.
2.Extensive use of software in managing the production process
3.State-of-art testing equipments and tools. E.g. Flying Probe, X-ray Inspection, AOI (Automated Optical Inspector) and ICT (in-circuit testing).
4.Dedicated quality assurance team with failure case analysis process
5.Continuous staff training and education

2. How do O-Leading keep your price competitive?
Over the last decade, prices of many raw materials (e.g. copper, chemicals) had doubled, tripled or quadrupled; Chinese currency RMB had appreciated 31% over US dollar; And our labor cost also increased significantly.  However, O-Leading have kept our pricing steady. This owns entirely to our innovations in reducing cost, avoiding wastes and improving efficiency. Our prices are very competitive in the industry at the same quality level.
We believe in a win-win partnership with our customers.  Our partnership will be mutually beneficial if we can provide you an edge on cost and quality.

3. What kinds of boards can O-Leading process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.

4. What data are needed for PCB production?
It is best to provide data in Gerber 274-X format. In addition, Cam350, CAD, Protel 99se, PADS, DXP and Eagle can also be processed.

5. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond → Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
