Printed circuit board manufacturer, Printed circuit board companyPrinted circuit board manufacturer, Printed circuit board companyPrinted circuit board manufacturer, Printed circuit board company

Printed circuit board manufacturer, Printed circuit board company

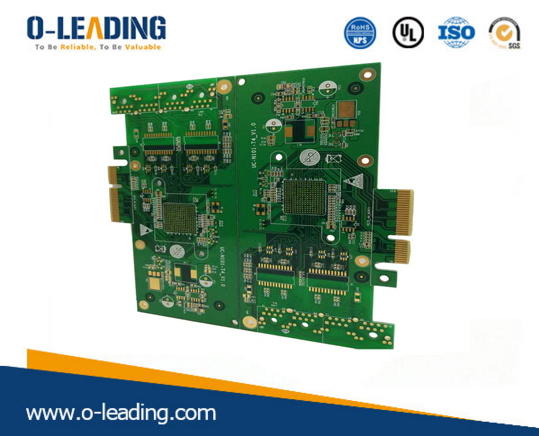

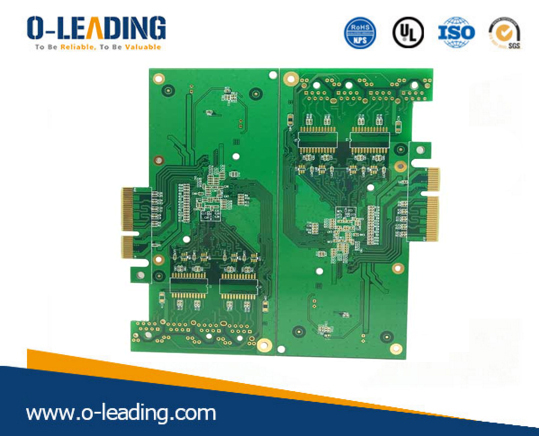

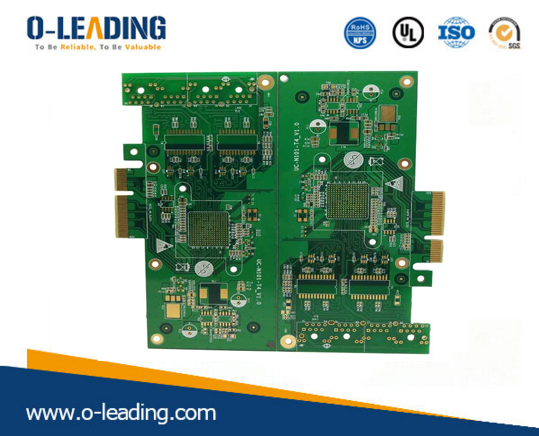

  • 1.PCB P/N:22327
  • 2.Layer:8L
  • 3.Material: FR-4
  • 4.Board thk:1.6mm
  • 5.copper thk:35UM
  • 6.Smallest hole size:0.25MM
  • 7.No. of holes (pcs):938
  • 8.line w/s: 4.5/2.5mil
  • 9.Impedance control. Y / N (Tol %):Y
  • 10.Surface : Immersion Gold
  • 11.Solder Mask Silkscreen:Green
  • 12.Single board size:Dim X (mm):195;Dim Y (mm):345
  • 13.Special:8L PCB apply for industry control, with gold finger
  • 14.Routing/Punching:CN

Welcome to O-leading:

We are professional PCB manufacturer with ten years experiences . Products range-single, double side ,multi-layer PCB ,flexible PCB and MCPCB.

We can provide fast prototype service – S/S in 24hrs , 4-8layers in 48-96 working hrs production time.oem mobile phones pcb circuit board  with power supply

COPPER PLATE HOLES MINIMUM .025 AVG, .020MIN.. HOLES MAY NOT BE PLUGGED
Pack with colorless transparent bubble film ,25PCS/ bag, put desiccant in flank, put humidity  indicator card on top side

multilayer PCB manufacturer in china, PCB assembly Printed circuit board, China pcb manufacturers

Place of Origin

Guang dong, China (Mainland)

Brand Name

O-Leading

Base Material

FR-4,,Aluminum

Copper Thickness

0.5oz-5oz

Min. Hole Size

0.2mm

Min. Line Width

0.2mm

Surface Finishing

immersion gold ,OSP,lead free HASL

Board Thickness

0.1-5mm

applicable to

led,mobile phone,air conditioners,washing machines

character

 Industrial Control pcb

certificates

ISO9001,UL,RoHS,SGS

Q/CTN

10PCS-100PCS

weight

0.01kg -5kg

MOQ

10pcs

color  blue ,red ,green,black.yellow  Min. Line Spacing  0.2mm
Model Number  power bank pcb assembly pcba manufacturer  price  $0.1-$10
desigh type  client requirement  size  0.01m3-10m3


Packaging & Delivery

Packaging Details

16 years professional OEM pcb board manufacturer

Delivery Detail

7-12days
