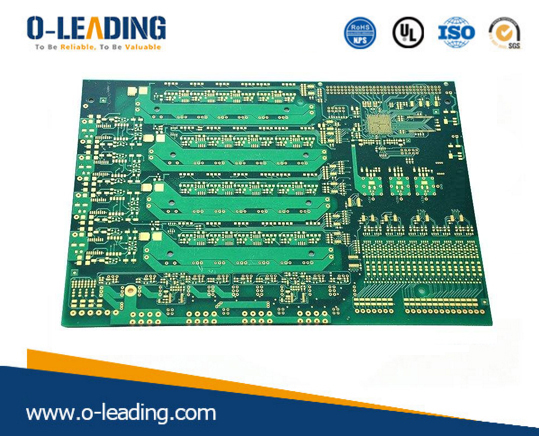

- 1.PCB P/N: 84312
- 2.Layer count:12 layer, 3+N+3 structure
- 3.Material:FR4 TG180
- 4.Board thickness: 1.5mm
- 5.Copper thickness: 1oz
- 6.Minimum drill size: 0.1mm
- 7.Minimum trace & gap: 0.1mm
- 8.BGA pad size: 0.32mm
- 9.Surface finish: immersion gold
- 10.green solder mask, with impedance control
- 11.Special technology: blind and buried via
- 12.Via in pad plugged & plated shut, stacked vias
- 13.Blind drill: layer 3+N+3 structure
- 14.Applications: industry control
- 15.One stop turnkey EMS service, including material procurement, SMT and thru-hole assembly, box build assembly
- 16.UL recognized and RoHS compliant
Welcome to O-leading:
We are professional PCB manufacturer with ten years experiences . Products range-single, double side ,multi-layer PCB ,flexible PCB and MCPCB.We can provide fast prototype service – S/S in 24hrs , 4-8layers in 48-96 working hrs production time.
COPPER PLATE HOLES MINIMUM .025 AVG, .020MIN.. HOLES MAY NOT BE PLUGGED
Pack with colorless transparent bubble film ,25PCS/ bag, put desiccant in flank, put humidity indicator card on top side
Place of Origin |
Guang dong, China (Mainland) |
Brand Name |
O-Leading |
Base Material |
FR-4,,Aluminum |
Copper Thickness |
0.5oz-5oz |
Min. Hole Size |
0.2mm |
Min. Line Width |
0.2mm |
Surface Finishing |
immersion gold ,OSP,lead free HASL |
Board Thickness |
0.1-5mm |
applicable to |
led,mobile phone,air conditioners,washing machines |
character |
Industrial Control pcb |
certificates |
ISO9001,UL,RoHS,SGS |
Q/CTN |
10PCS-100PCS |
weight |
0.01kg -5kg |
MOQ |
10pcs |
color | blue ,red ,green,black.yellow | Min. Line Spacing | 0.2mm |
Model Number | power bank pcb assembly pcba manufacturer | price | $0.1-$10 |
desigh type | client requirement | size | 0.01m3-10m3 |
Packaging & Delivery
Packaging Details |
16 years professional OEM pcb board manufacturer |
Delivery Detail |
7-12days |
